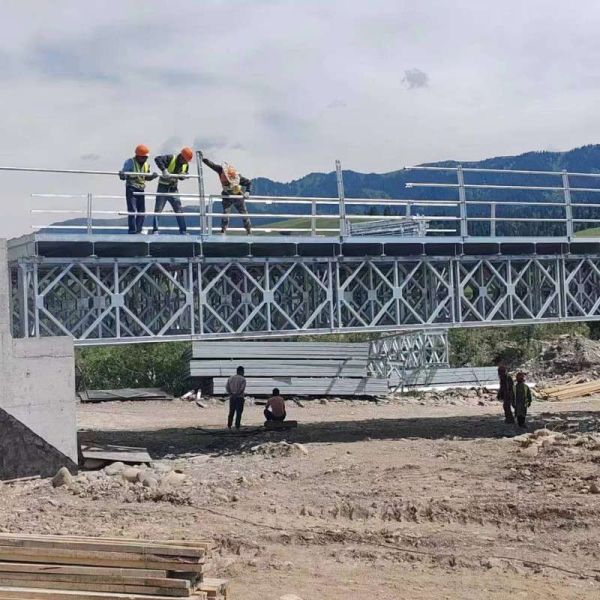

Steel Portable Bridge For Sale/steel Modular Bridge For Sale
The 200-Type Bailey bridge is constructed using high-strength steel materials, specifically designed to offer enhanced load-bearing capacity and durability. Here are the key materials and their characteristics used in the construction of the 200-Type Bailey bridge:
Materials Used
1. **Steel Panels**:
- The primary material used in 200-Type Bailey bridges is high-strength steel. The panels are typically made from steel grades such as Q235B, Q345B, or customized steel grades to meet specific project requirements.
- The steel panels are designed to be lightweight yet strong, allowing for easy transportation and rapid assembly.
2. **Surface Treatment**:
- The steel components are often treated with hot-dip galvanizing to provide superior corrosion resistance. This process involves immersing the steel in molten zinc, which forms a protective layer that prevents rust and extends the lifespan of the bridge.
- In some cases, the surface treatment may also include priming paint and a finishing coat to enhance durability and aesthetics.
3. **Bolts and Pins**:
- The bridge components are connected using high-strength bolts and pins. These fasteners are designed to withstand significant tensile and shear forces, ensuring the structural integrity of the bridge.
4. **Decking**:
- The bridge deck is typically made from steel sheets or steel gratings. In some applications, wooden planks may also be used for lighter duty bridges.
Technical Specifications
- **Panel Dimensions**: The standard panel size is 3.048 meters (10 feet) in length and 2.134 meters in height.
- **Load Capacity**: The 200-Type Bailey bridge is designed to support various load classes, including HS-15, HS-20, HS-25, and tracked vehicles up to 50 tons.
- **Span and Configuration**: The maximum single span can reach up to 60.96 meters, with the bridge length adjustable in increments of 3.048 meters. It can be configured as a single-lane or double-lane bridge, with clear widths of 3.15 meters, 4.2 meters, and 7.35 meters.
Advantages of Materials Used
- **Durability and Longevity**: The use of high-strength steel and galvanization ensures that the bridge can withstand harsh environmental conditions and has a long service life.
- **Rapid Deployment**: The lightweight and modular nature of the steel components allows for quick assembly and disassembly, making it ideal for emergency response and temporary bridge needs.
- **Cost-Effectiveness**: The materials used in the 200-Type Bailey bridge are designed to be cost-effective, with minimal maintenance requirements over the bridge's lifespan.
In summary, the 200-Type Bailey bridge is constructed using high-strength steel panels, bolts, and pins, with surface treatments like hot-dip galvanizing to enhance corrosion resistance. These materials ensure the bridge's durability, load-bearing capacity, and rapid deployment capabilities.
Specifications:
| CB321(100) Truss Press Limited Table |
| No. | Lnternal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Standard Truss Moment(kN.m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 1687.5 | 3375 | 4809.4 | 6750 |
| 321(100) | Standard Truss Shear (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 245.2 | 490.5 | 698.9 | 490.5 |
| 321 (100) Table of geometric characteristics of truss bridge(Half bridge) |
| Type No. | Geometric Characteristics | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Section properties(cm3) | 3578.5 | 7157.1 | 10735.6 | 14817.9 | 7699.1 | 15398.3 | 23097.4 | 30641.7 |
| 321(100) | Moment of inertia(cm4) | 250497.2 | 500994.4 | 751491.6 | 2148588.8 | 577434.4 | 1154868.8 | 1732303.2 | 4596255.2 |
| CB200 Truss Press Limited Table |
| NO. | Internal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | QS | SSR | DSR | TSR | QSR |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
| CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge) |
| Structure | Geometric Characteristics |
| Geometric Characteristics | Chord Area(cm2) | Section Properties(cm3) | Moment of Inertia(cm4) |
| ss | SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | DS | 50.96 | 10875 | 1160348 |
| DSR1 | 76.44 | 16312 | 1740522 |
| DSR2 | 101.92 | 21750 | 2320696 |
| TS | TS | 76.44 | 16312 | 1740522 |
| TSR2 | 127.4 | 27185 | 2900870 |
| TSR3 | 152.88 | 32625 | 3481044 |
| QS | QS | 101.92 | 21750 | 2320696 |
| QSR3 | 178.36 | 38059 | 4061218 |
| QSR4 | 203.84 | 43500 | 4641392 |
Advantage
Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
